Solaire X3 Zip 5kW Three Phase On Grid Solar Inverter

Price 2800 INR/ Piece

Get a Price/Quote

MOQ : 3 Pieces

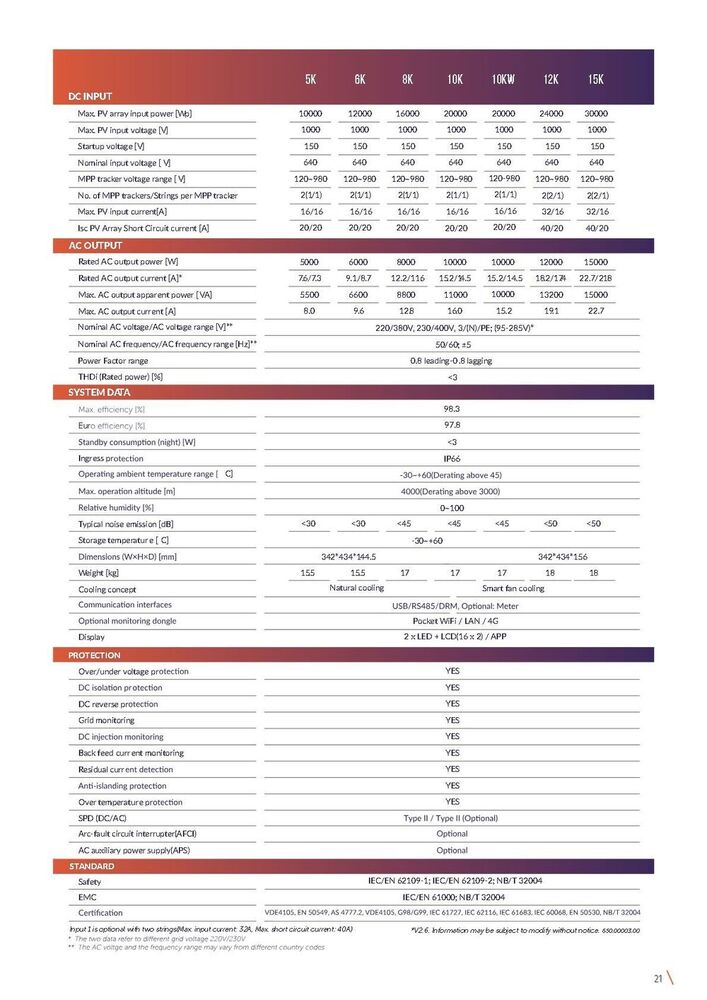

Solaire X3 Zip 5kW Three Phase On Grid Solar Inverter Specification

Input Voltage
120 980V DC (MPPT Voltage Range); Maximum PV Input Voltage 1000V DC Volt (V)

Efficiency
Up to 98.3%

Maintenance Type
Low Maintenance

Features
IP66 Protection, 2 MPPT Trackers, Built-in Export Power Control, LCD Display, LED Indicators, App Monitoring, Remote Settings and Upgrading, Optional Wi-Fi/LAN/4G Communication

Product Type
Other

Material
NA

Number of Cells
NA

Power
5kW to 15kW (Model Dependent) Watt (w)

Operating Temperature
-30 C to +60 C (Derating Above 45 C) Celsius (oC)

Max Voltage
1000V DC Volt (V)

Max System Voltage
NA Watt (W)

Output Voltage
220/380V, 230/400V Volt (V)

Cable Length
NA Inch (in)

Switch Mode
Automatic Switch

Size
Compact Design

Dimension (L*W*H)
342 434 144.5 mm (5kW 12kW); 342 434 156 mm (15kW) Millimeter (mm)

Color
White

Weight
15.5kg 18kg (Model Dependent) Kilograms (kg)

Warranty
As Per Manufacturer's Warranty Policy

Application
Home, Industrial, Commercial

Type Of Technology
Other

Installation Type
Other

Solaire X3 Zip 5kW Three Phase On Grid Solar Inverter Trade Information

Minimum Order Quantity
3 Pieces

Supply Ability
30 Pieces Per Month

Delivery Time
1 Week

Main Domestic Market
Maharashtra

About Solaire X3 Zip 5kW Three Phase On Grid Solar Inverter

Solaire X3 Zip Three Phase On-Grid Solar Inverter

The Solaire X3 Zip On-Grid Solar Inverter is designed for three-phase grid-connected solar power systems. Available in power ratings from 5kW to 15kW, it is suitable for residential, commercial and other compatible solar installations.

The inverter supports a maximum PV input voltage of 1000V and features two MPPT trackers for flexible solar panel configuration. With maximum conversion efficiency of up to 98.3%, it is designed to support efficient solar power generation.

The Solaire X3 Zip series features an IP66 protection rating, integrated AC and DC surge protection options, and multiple monitoring methods. Its LCD display, LED indicators and app-based monitoring options help users monitor inverter performance.

Key Features:

Three-Phase On-Grid Solar Inverter
Available Capacities: 5kW, 6kW, 8kW, 10kW, 10KW, 12kW and 15kW
Maximum PV Array Input Power: Up to 30kWp
Maximum PV Input Voltage: 1000V
Two MPPT Trackers
Maximum Conversion Efficiency: 98.3%
Euro Efficiency: 97.8%
IP66 Ingress Protection
Built-in Export Power Control
Remote Settings and Upgrading
24-Hour Monitoring and Maintenance Option
Natural Cooling or Smart Fan Cooling, depending on model
Communication Options: Pocket Wi-Fi, LAN and 4G
Intelligent Load Management for Heat Pumps (Adapter Box Required)

Applications:
Commercial rooftop solar installations, residential three-phase solar systems and other compatible grid-connected photovoltaic systems.

The Solaire X3 Zip series combines high-voltage PV input capability, multiple MPPT trackers and intelligent monitoring features for different solar project requirements.
